WP-8 Installation Guide

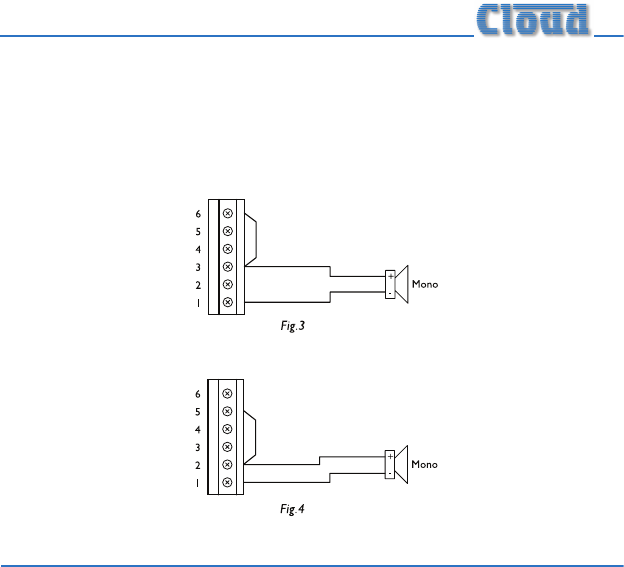

Connecting loudspeakers – mono operation

Outputs may be paralleled if a single mono output is required. Connect the

loudspeaker as shown in Fig. 3 if continuous operation is required, or as in

Fig. 4, if the speaker should mute when headphones are connected.
