WP-8 Installation Guide

Driving powered loudspeakers or external ampliers

A line level signal may be derived from the outputs by the addition of 1k ohm

resistors; this may be used to drive active loudspeakers or the inputs of a

separate external amplier. Again, either stereo or mono operation may be

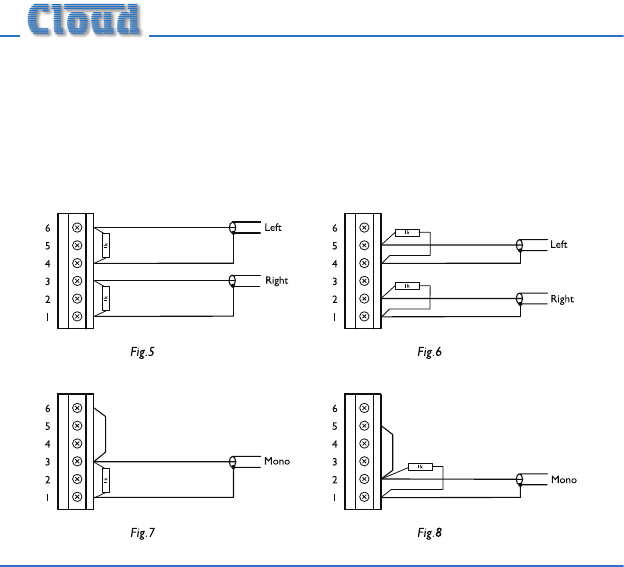

employed. Use the wiring shown in Fig. 5 (continuous) or Fig. 6 (switched) for

stereo operation, or Fig. 7 (continuous) or Fig. 8 (switched) for mono operation.
